Gravoptics

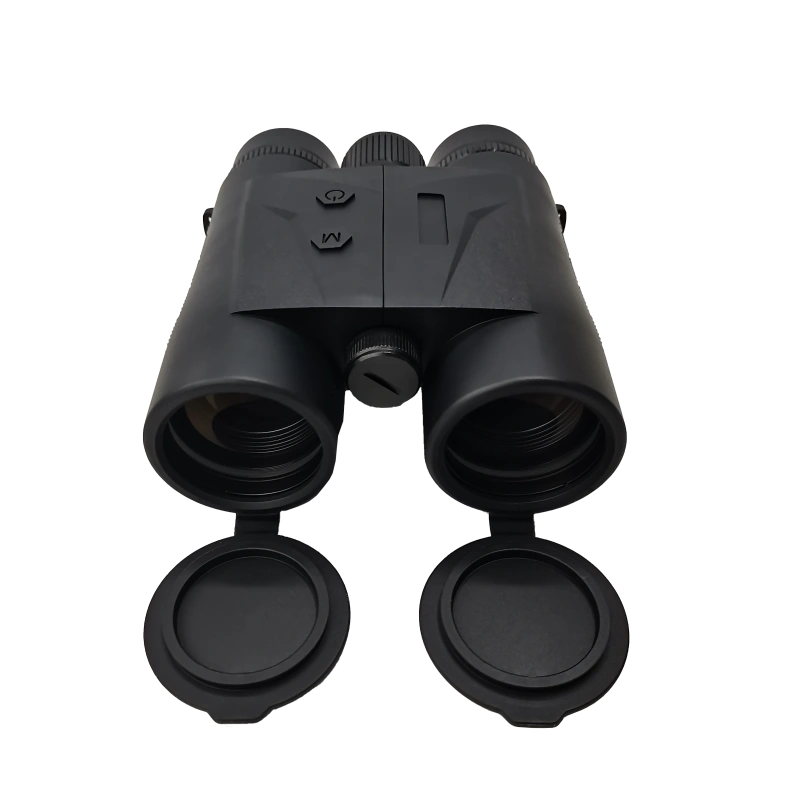

Laser Rangefinder Binocular KL1800A

Laser Rangefinder Binocular KL1800A

$219.00 USD
$219.00 USD
Sale Sold out
Shipping calculated at checkout.
  • 10×42ED
  • Precise distance measurement and angle measurement
  • IP67
  • Nitrogen-filled sealing
View full details

Features

  • BAK4 prism
  • Precision Measurement
  • Scan Ranging
  • Full HD (Full High- Definition)
  • Multi-layer Broadband Coating
  • Magnesium Alloy Body

Specifications

Name Laser rangefinding binoculars
Model 10×42 ED
Magnification 10×
Exit Pupil Diameter 21mm
Objective Lens Aperture 42mm
Field of View 6.1° @ 1000m / 320ft @ 1000yds
Minimum Focusing Distance 3m / 3.8ft
Ranging Range 1800m (Gray target 300m, Tree 400m, Deer 1500m)
Exit Pupil Diameter 4.25mm
Eye Relief 14.9mm
Relative Brightness 18.06
Twilight Factor 20.49
Prism Material BAK4
Laser Wavelength 905nm
Laser Emission Power <1mW
Laser Class Class I
Distance Display Bright black LCD display
Ranging Accuracy ±0.5m
Angle Measurement Range ±90°
Protection Level IP67
Dimensions 146×113×31mm
Weight 780g
Battery Specification CR2
Operating Temperature -20°C ~ +50°C

Application

Video

How To Use?

  • STEP1. Install Battery

    Open the battery cover and insert a CR2 battery, noting the positive and negative poles.
    If a low battery prompt (e.g., “LOW” or a flashing battery icon) appears on the screen after powering on, replace the battery promptly. Replace the CR2 battery at least once a year as recommended.

  • STEP2. Adjust Eyecups

    Without Eyeglasses: Fully twist up the eyecups to ensure a complete field of view.
    With Eyeglasses: Twist down the eyecups to reduce the distance between eyes and eyepieces, preventing view obstruction.

  • STEP3. Adjust Interpupillary Distance

    Hold both sides of the binoculars and move the barrels left/right to align the centers of the left/right eyepieces with your pupils.
    Complete the adjustment when a single, ghost-free image is seen (IPD should match your personal eye spacing).
1 2

Recommendations

Category Specific Recommendations
Storage Environment Temperature: -20°C ~ 50°C
Humidity: Avoid high humidity; use desiccant when storing
Location: Keep in a dry, ventilated place, away from direct sunlight and chemicals
Lens Maintenance Cleaning: Gently wipe with a lens pen or dust-free cloth; use specialized cleaning solution for stains
Protection: Cover lenses with lens caps when not in use
Taboos: Do not touch lenses with hands; never observe the sun
Battery Management Model: CR2 battery
Replacement: Replace at least once every 12 months
Long-term storage: Remove batteries to prevent leakage
Component Adjust Eyecups: Fully extend when not wearing glasses; twist down when wearing glasses
Interpupillary Distance: Adjust until left and right images overlap without shadows
Function Maintenance Ranging Mode: Auto power off after 8 seconds in single ranging mode; long-press the On/Range button to shut down at any time
Unit Switch: Long-press the Scan button to switch between Meters/Yards
Special Notes Waterproof: IP67 rating; avoid prolonged immersion
Laser Safety: Do not aim at human eyes; laser class CLASS I
Cleaning Frequency: Remove dust, dirt, and moisture from lenses promptly to prevent reduced light transmittance and ranging accuracy
